Shades and Panels

Our Service Shades and Panels

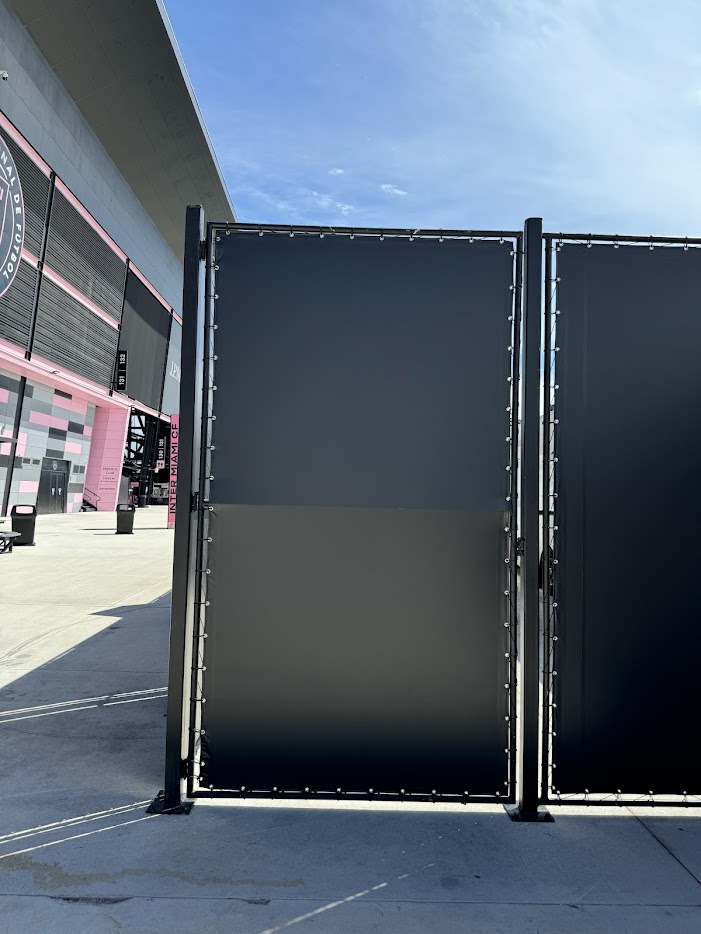

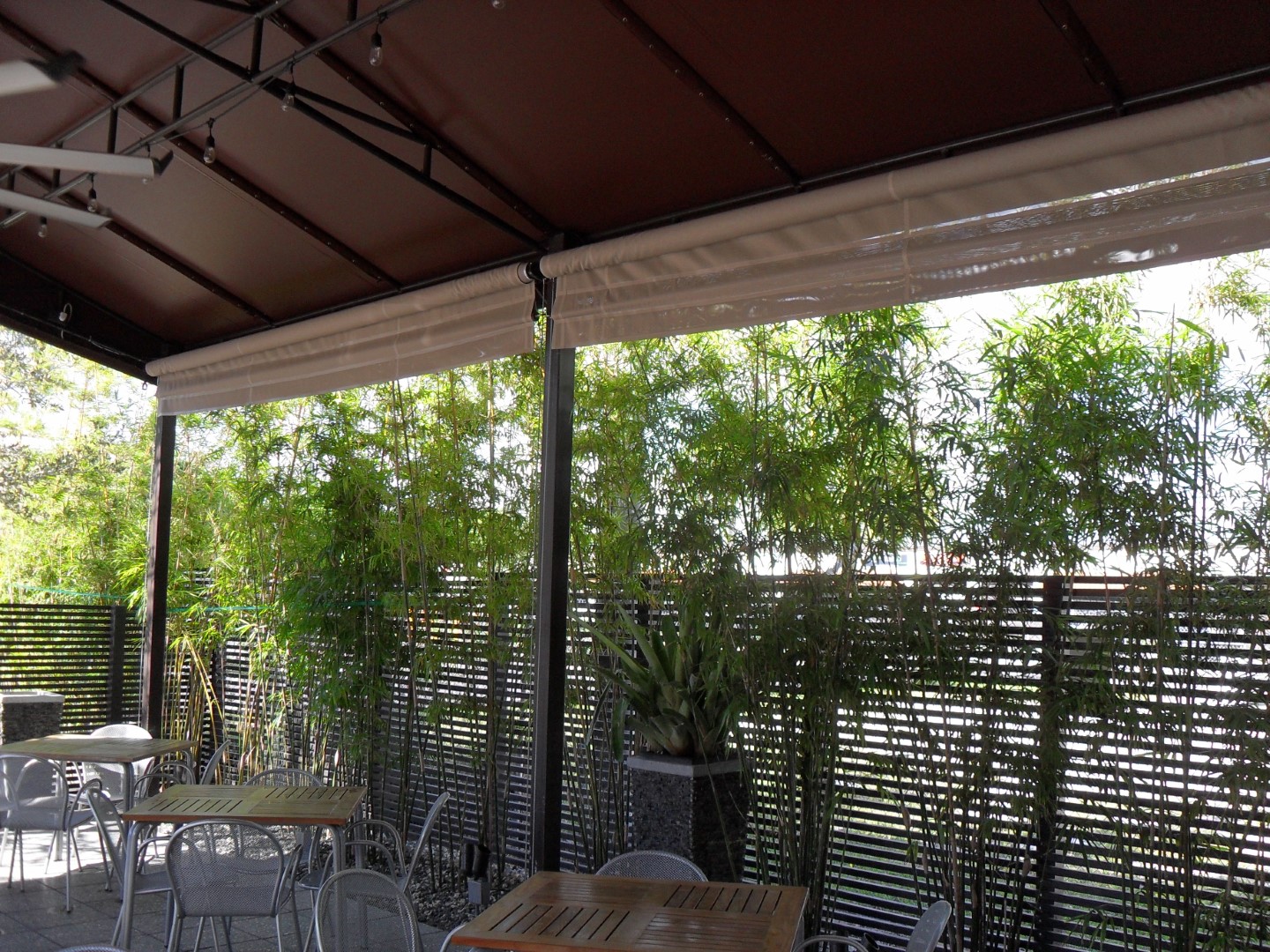

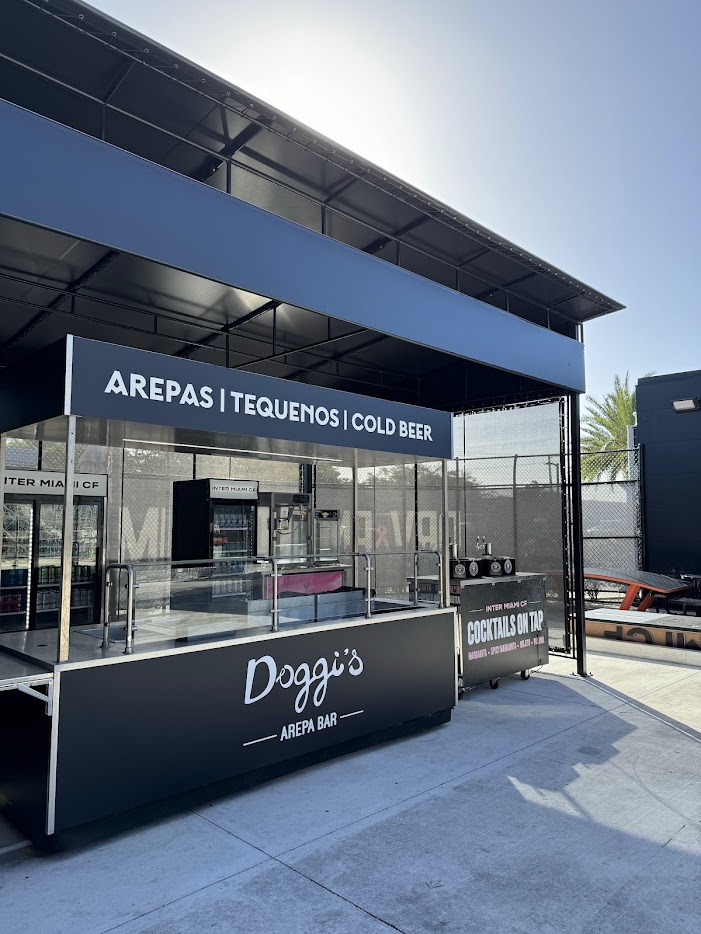

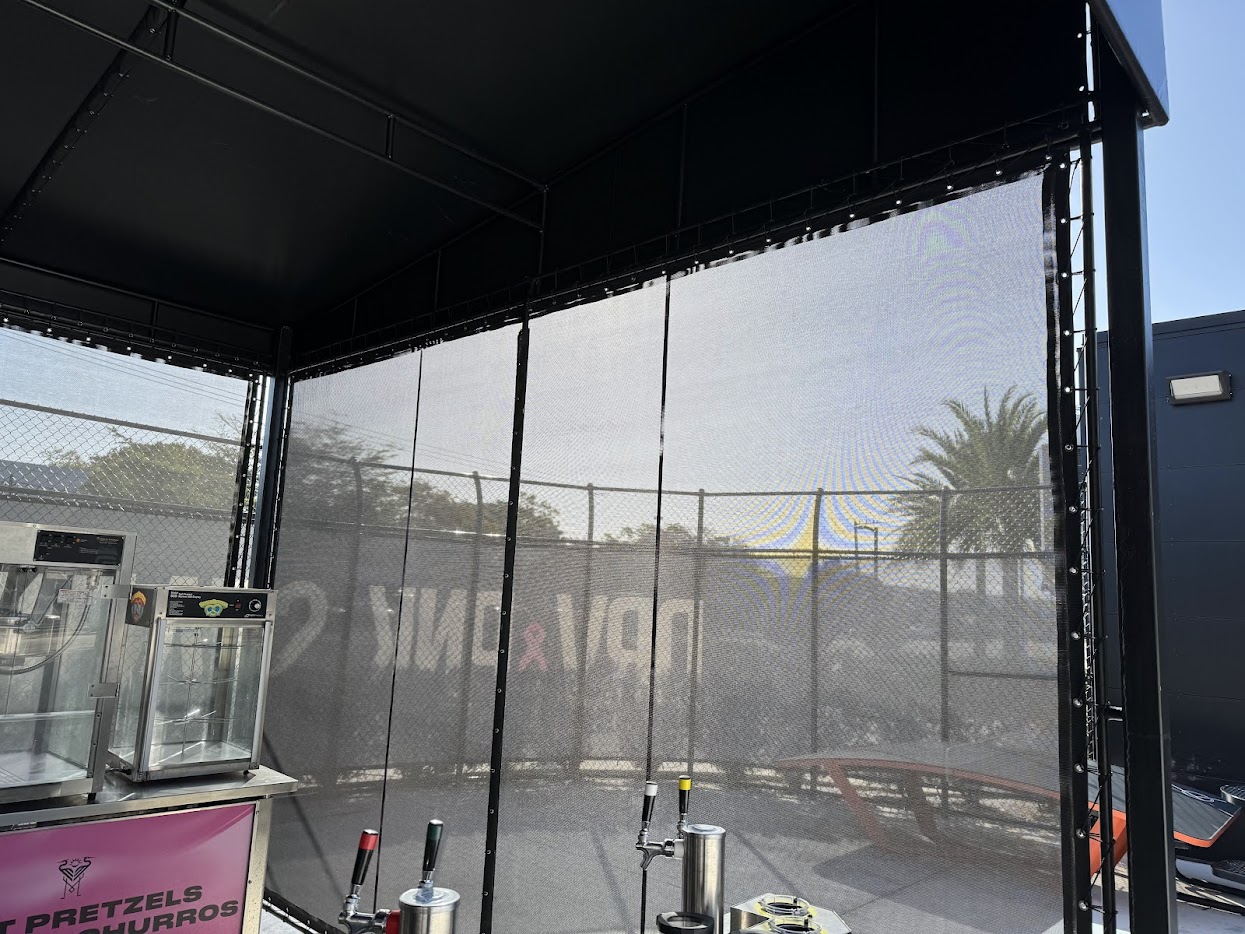

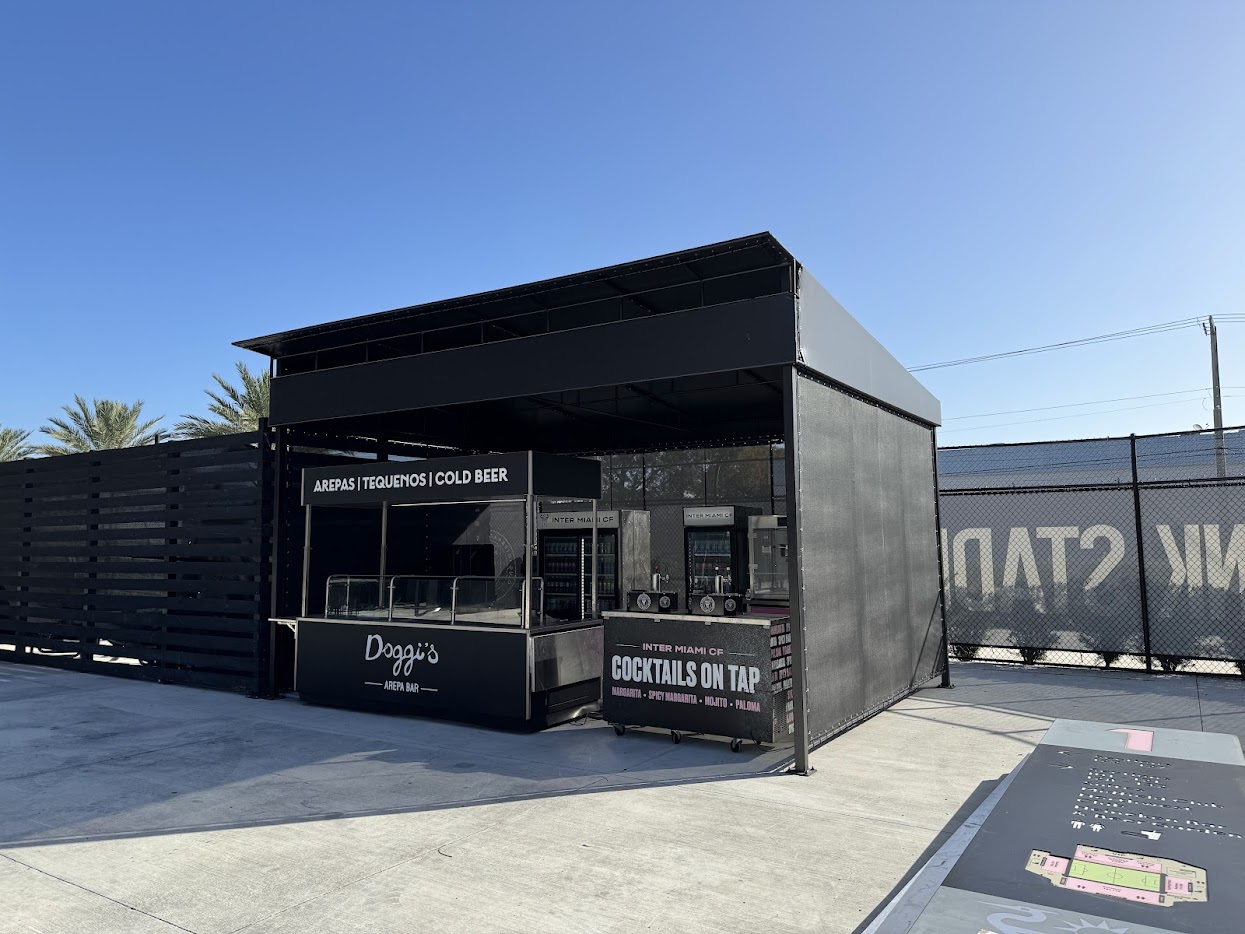

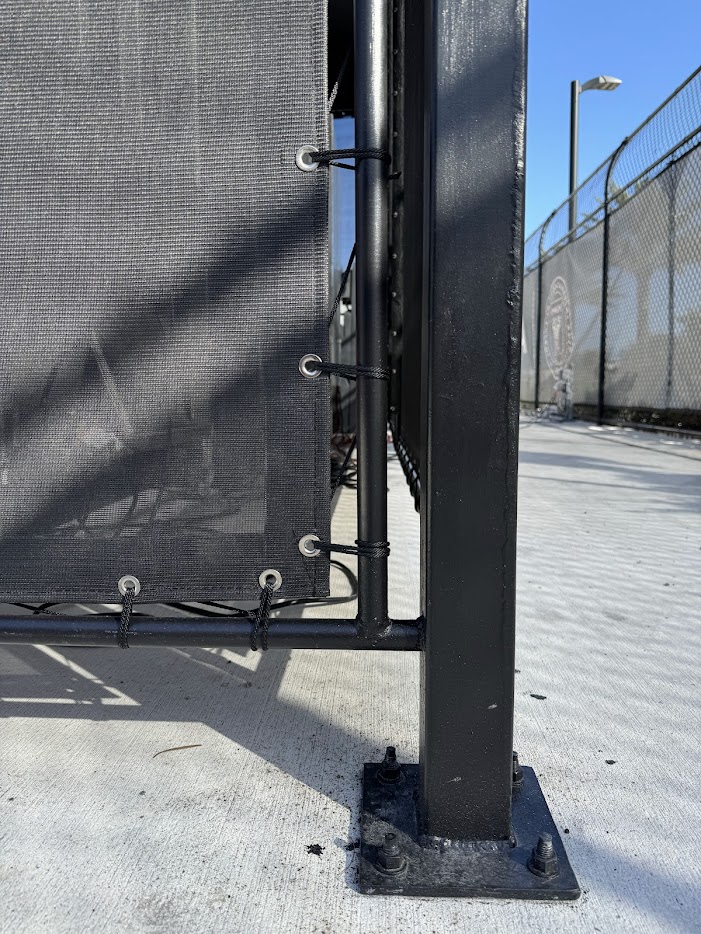

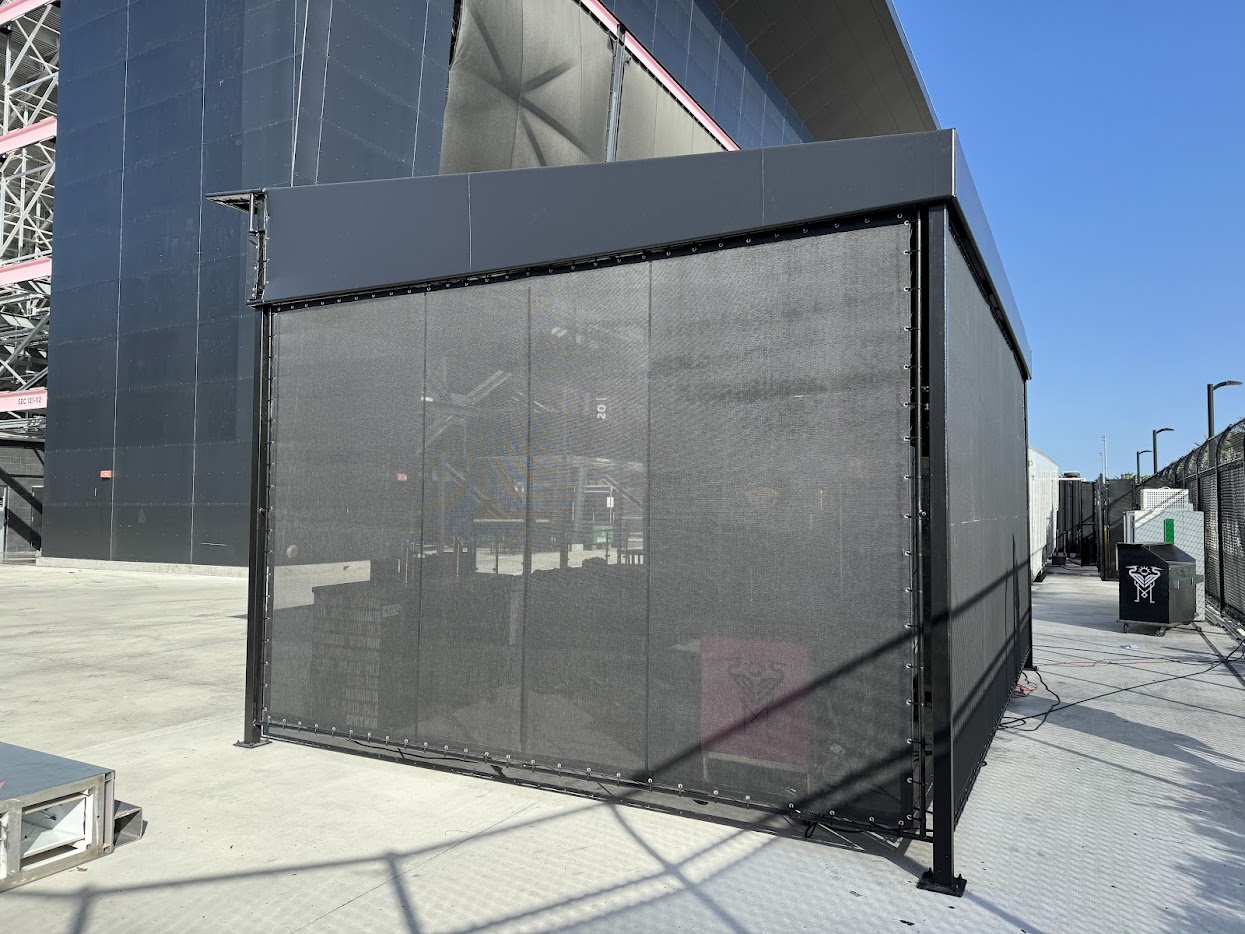

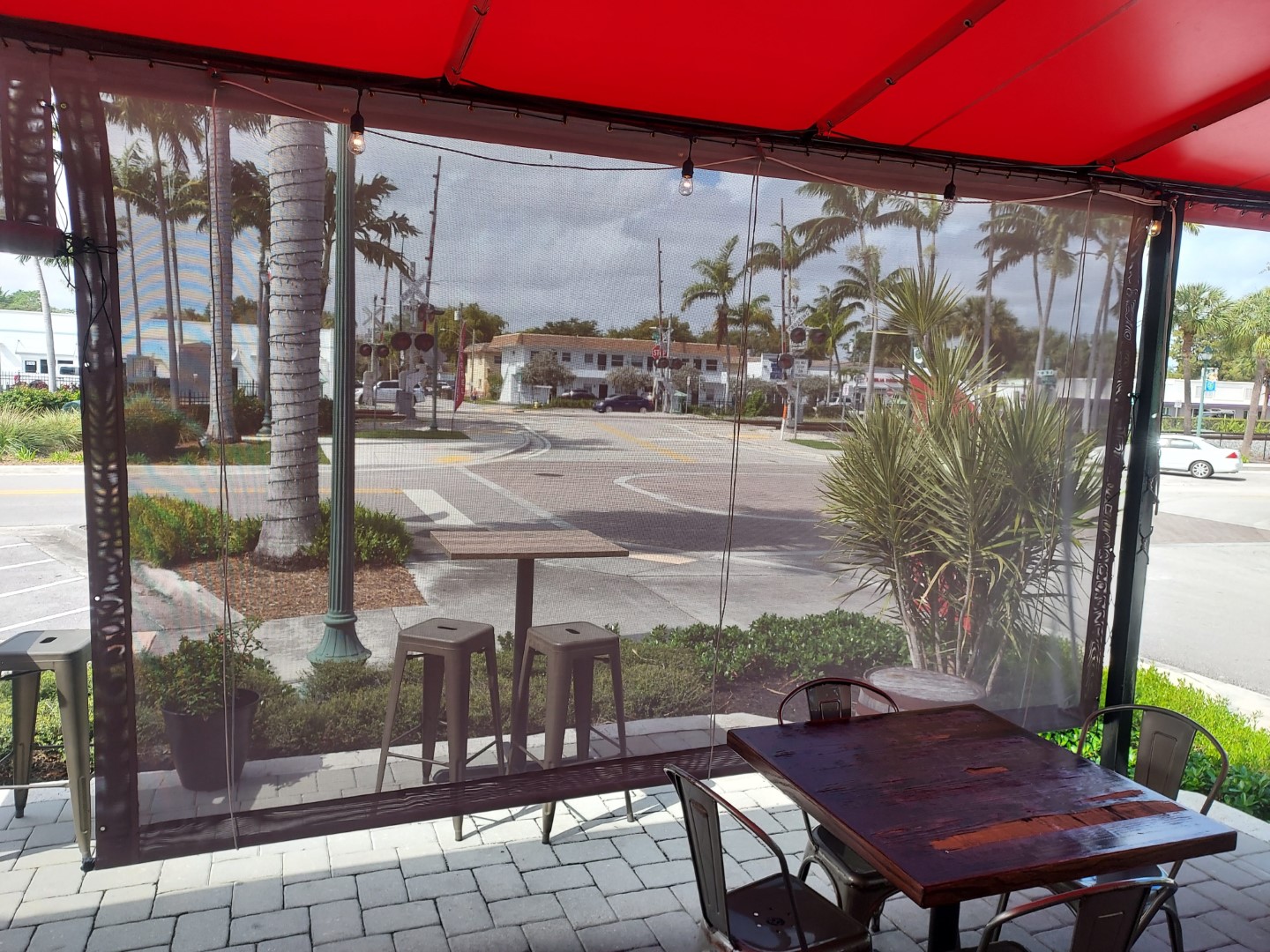

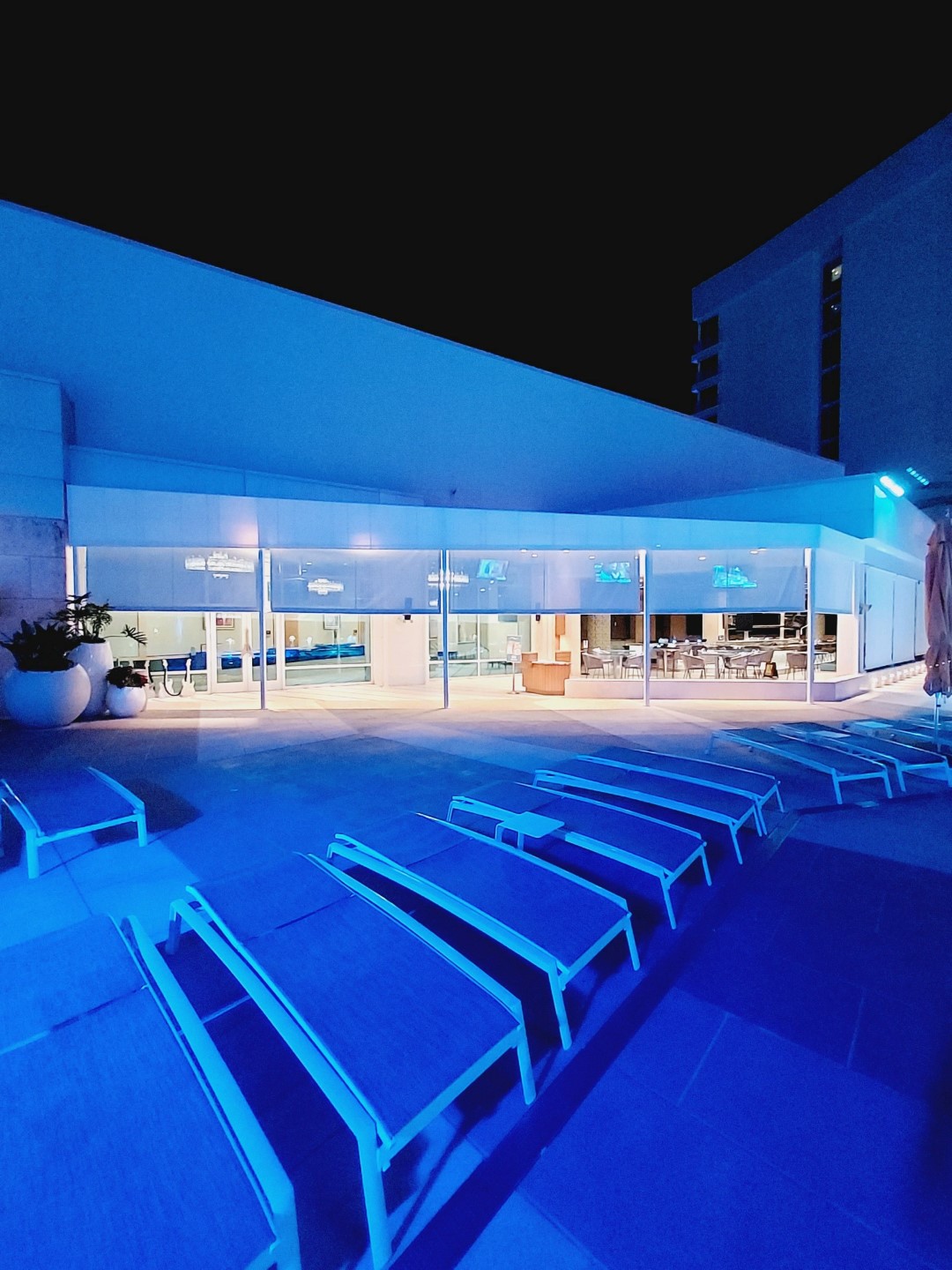

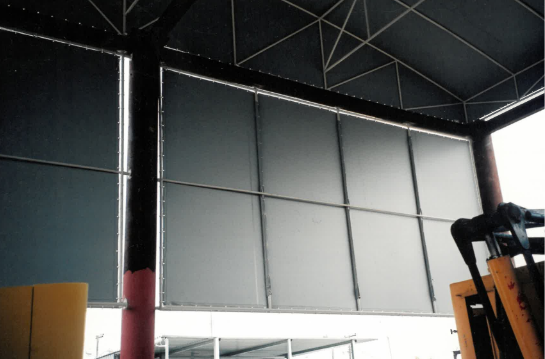

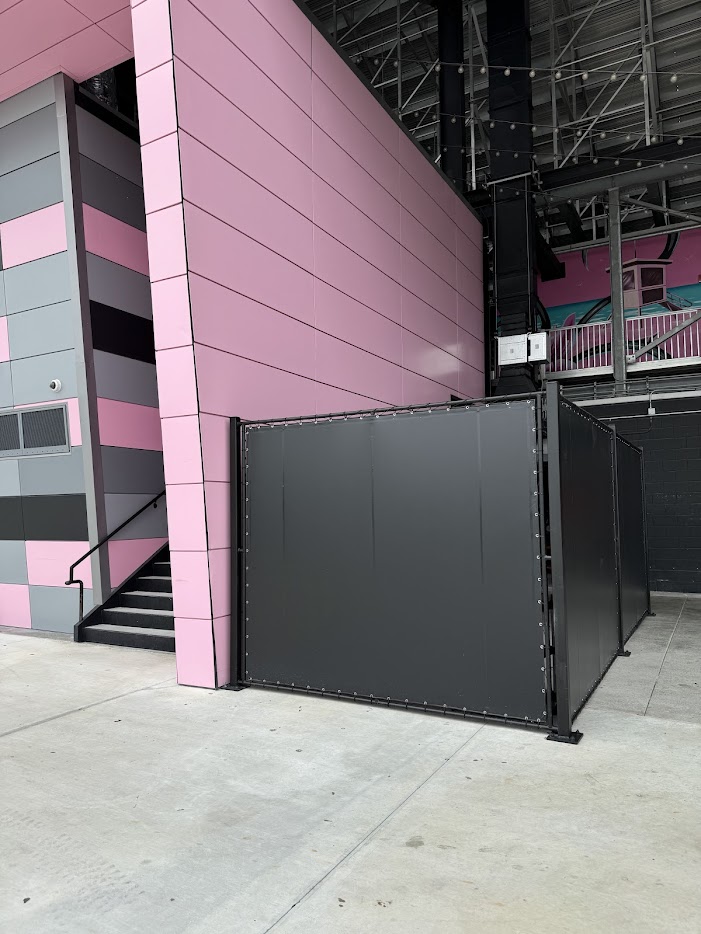

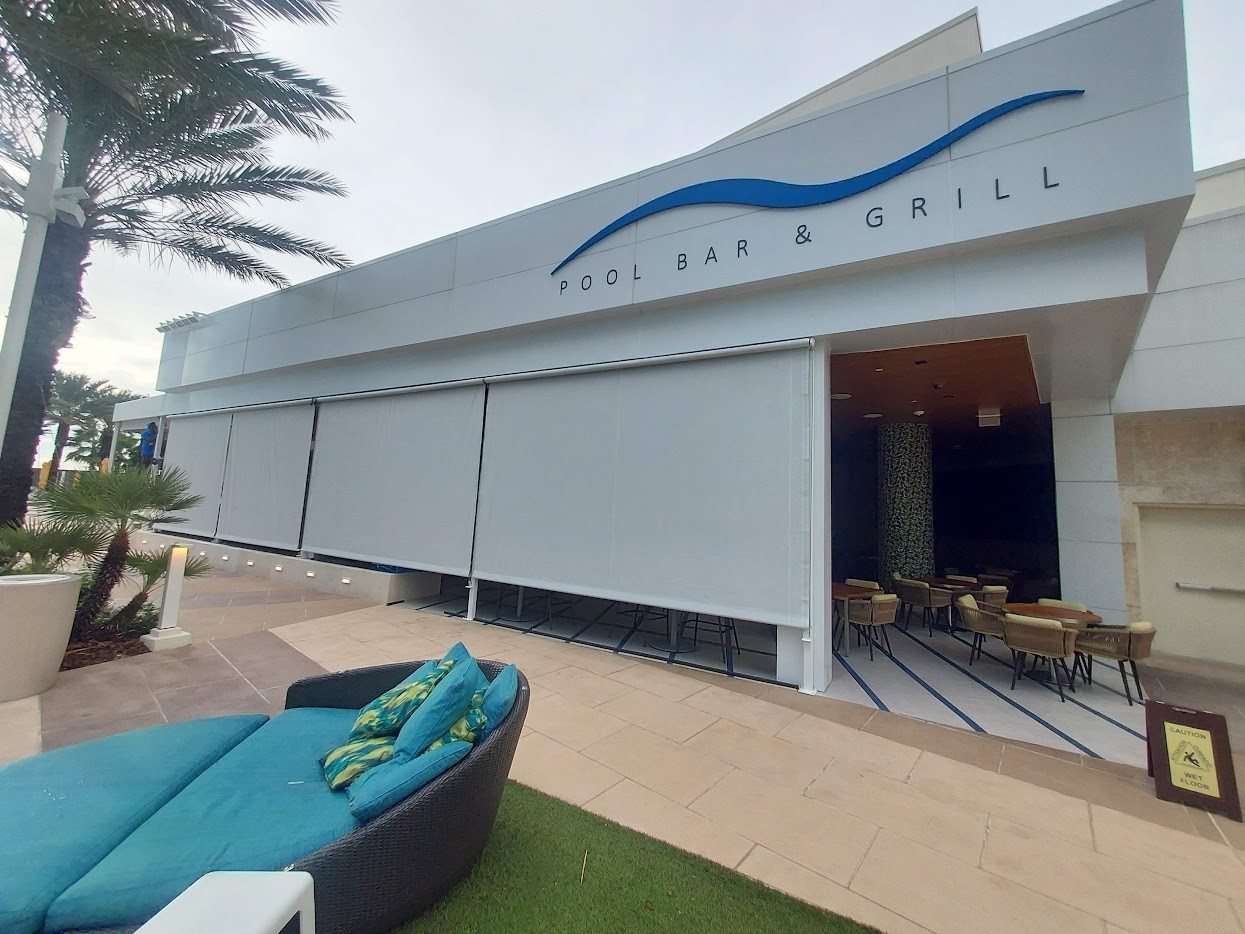

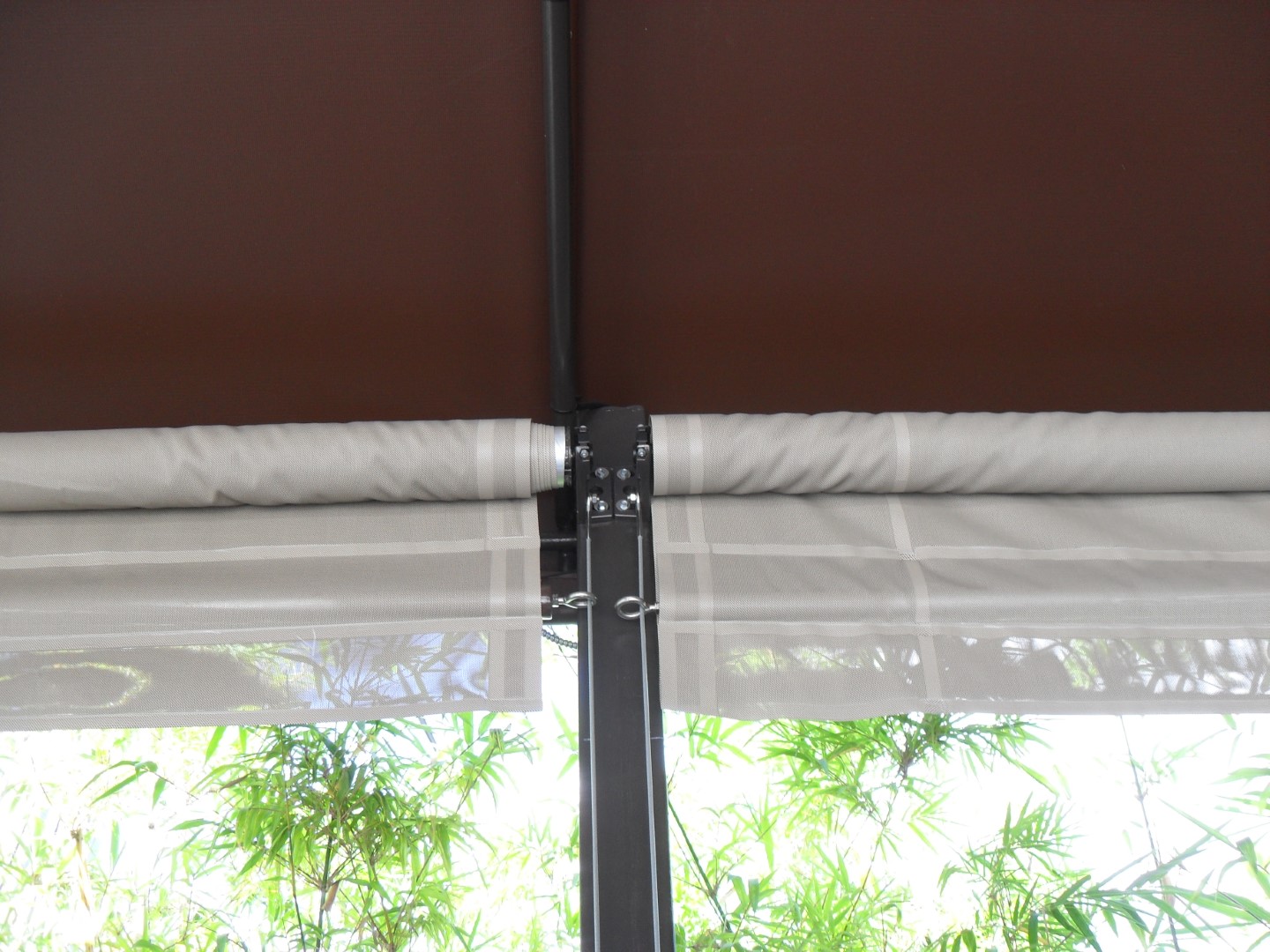

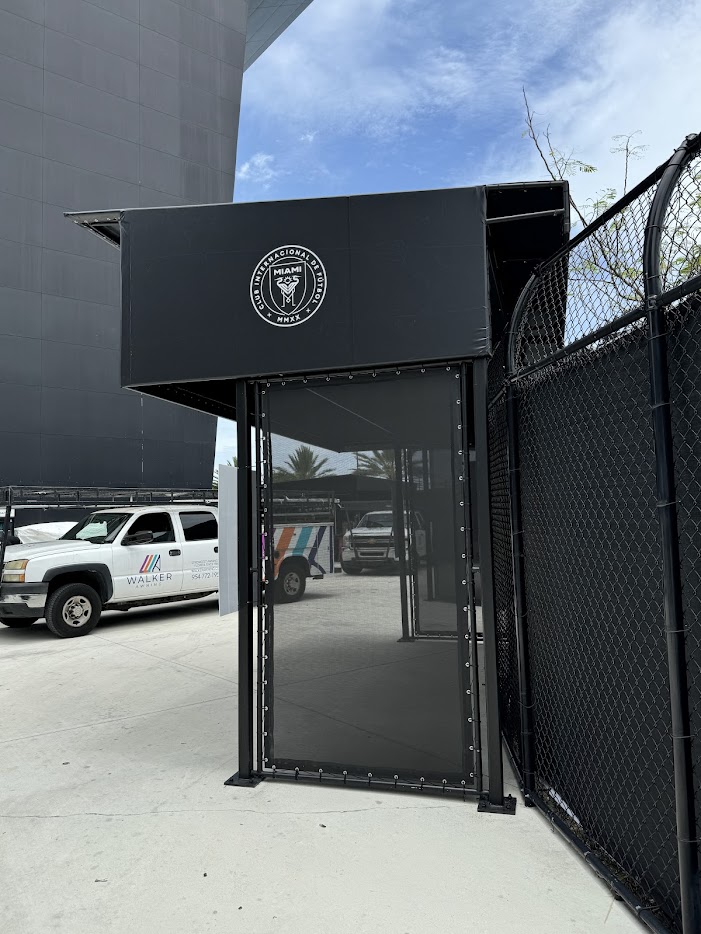

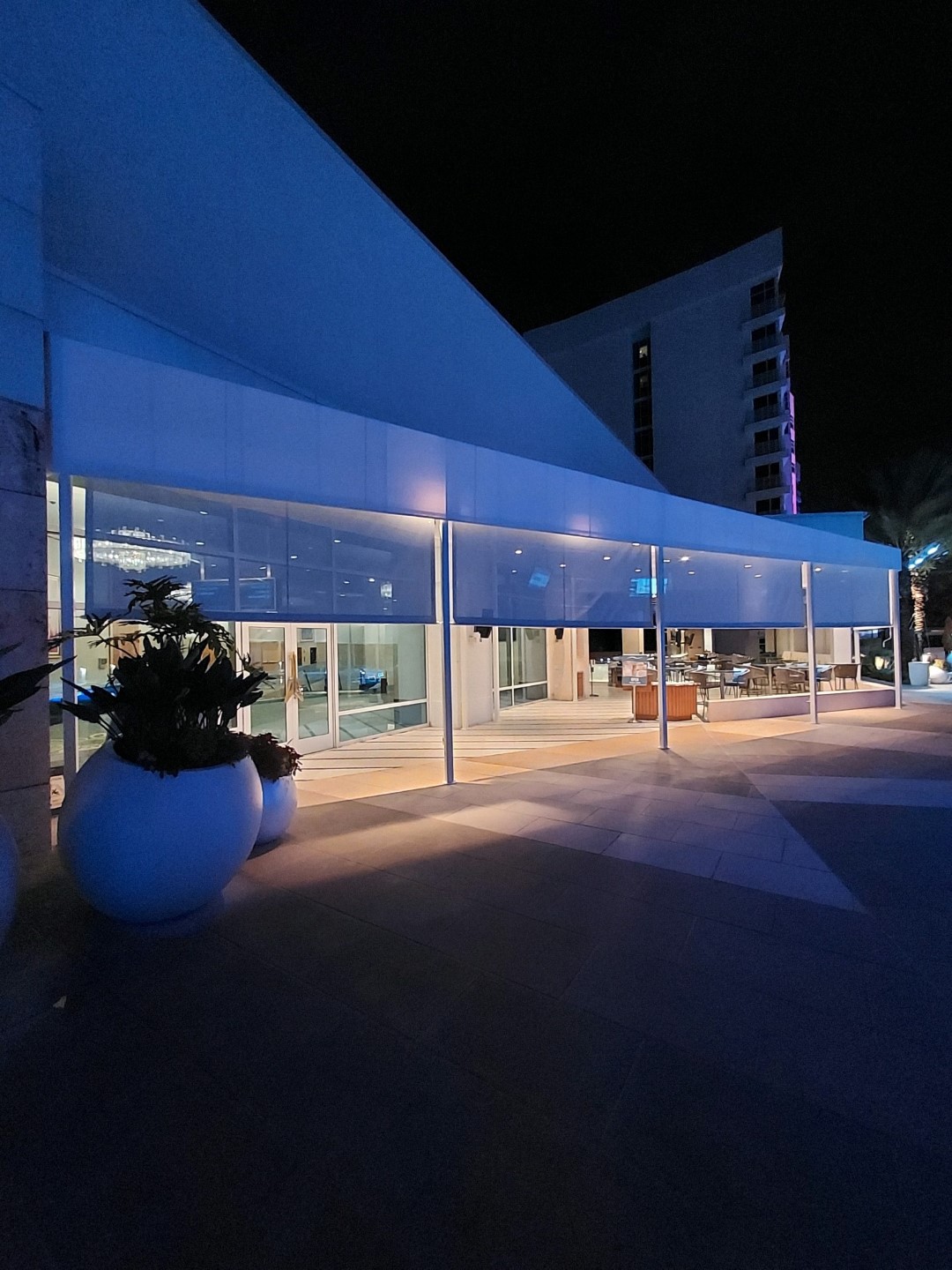

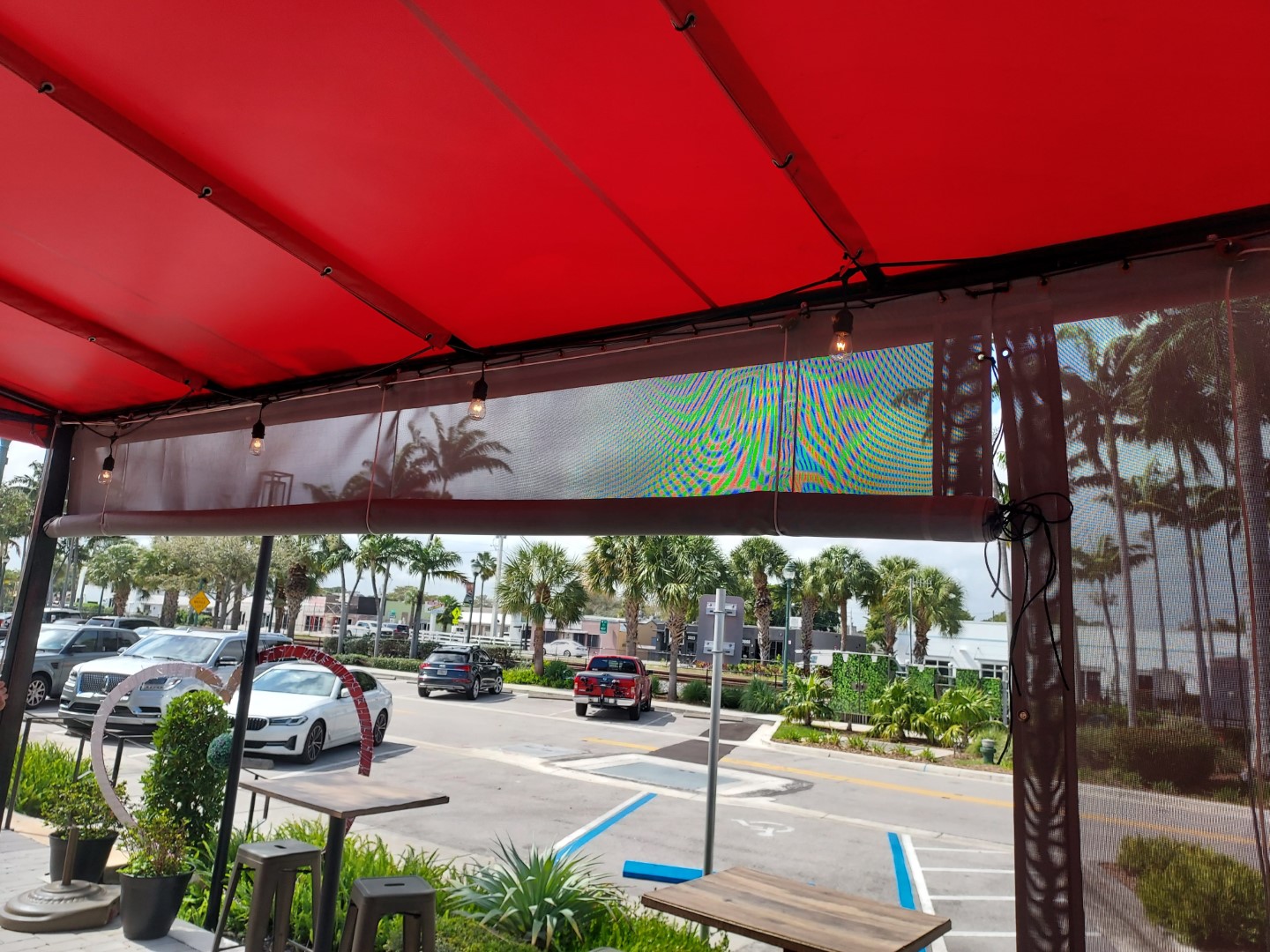

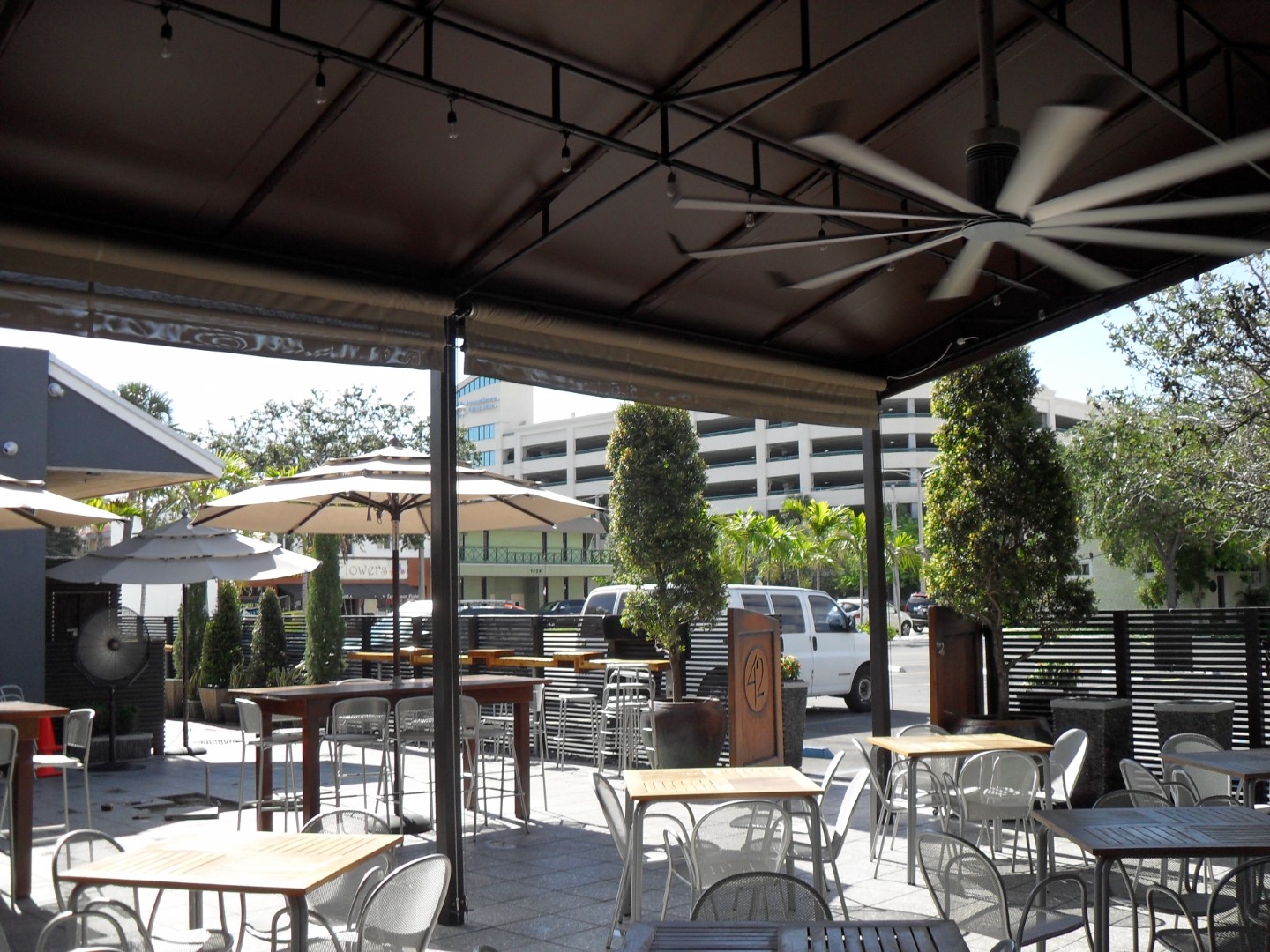

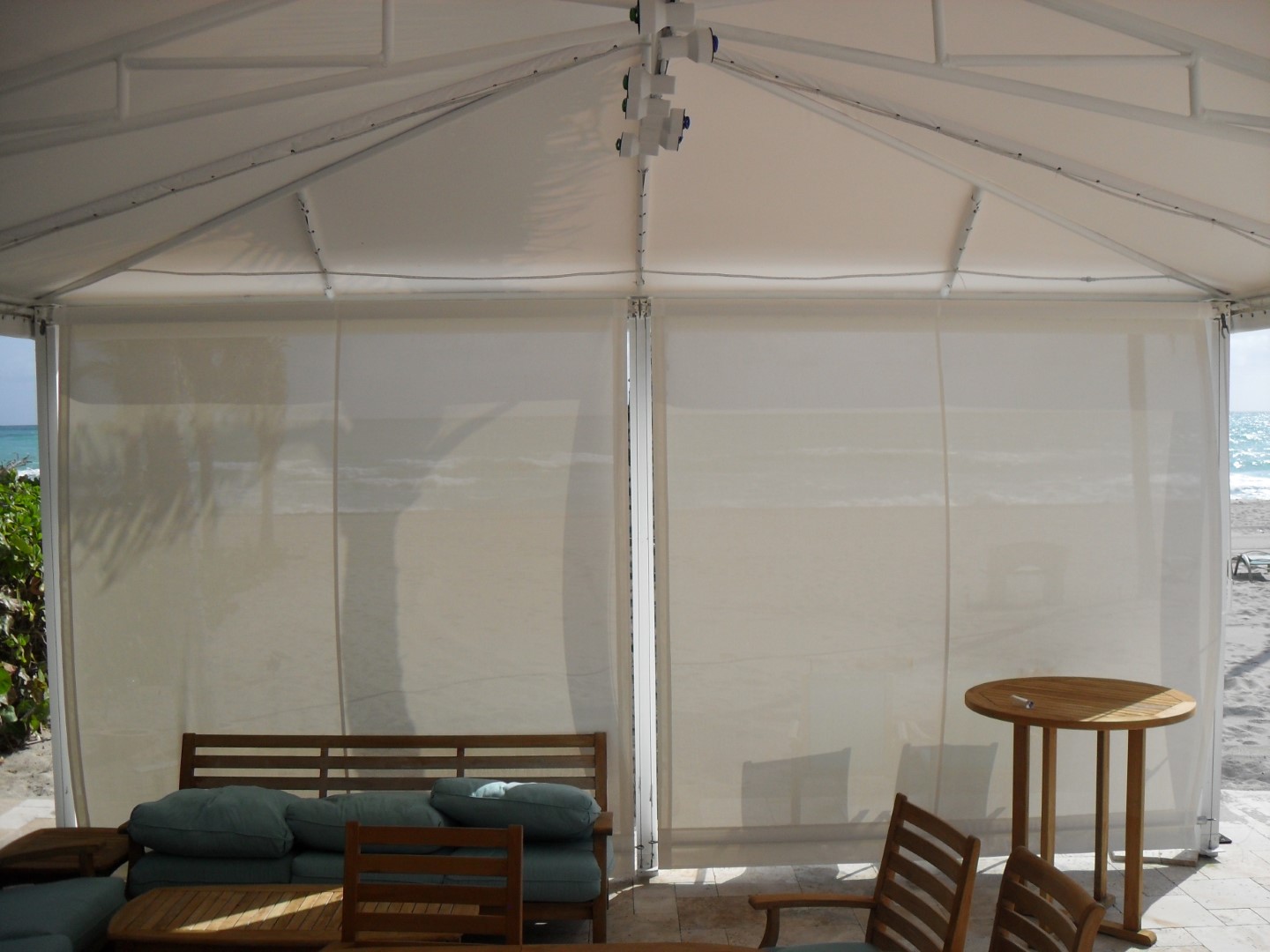

Adding a vertical shade system to a fixed frame awning is a great way to add privacy and additional shade. Shade fabrics are similar to awning fabrics but with spacing in the weave to let air and light through. We can select the right fabric for the level of transparency you would like. Shade systems come in a variety of options, from fixed in place panels, to simple classic roll up shades, manual crank, and electronic motors with remote controls.

Our Process

Consultation

Consult with our Architect and Design Experts

approve quote

Receive & Approve Tailored Price Quote

final design

Final Design, Engineering, & Permit

Design Specifications

Fascia Details

  • Height: 6″ to 14″ (8″ to 10″ optimal)
  • Material: Minimum 1/8″ aluminum for mitered and welded corners
  • Note: Thinner aluminum requires visible screws and caulking in place of welds (common in industrial truck court applications)

Projection Options

  • Standard: 4′ to 6′ (optimal)
  • Aesthetic: Shorter eyebrows for design purposes
  • Extended: Longer projections possible with thicker material, enhanced framing, or additional columns
  • Cantilever: Systems without hanging arms require larger support struts, designed with deeper fascia

Span Capabilities

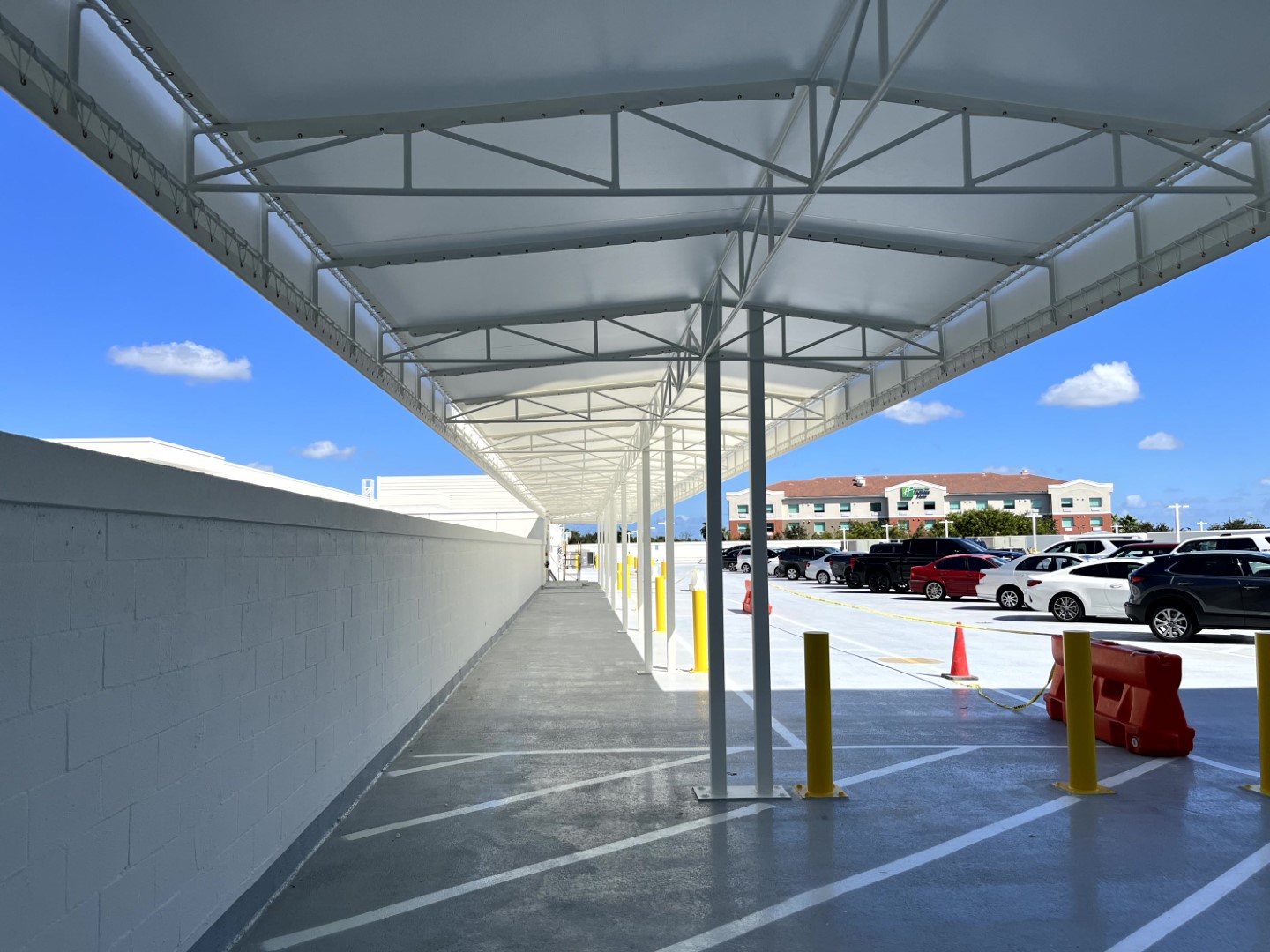

  • Walkways: 7′-6″ to 10′ typical spans
  • Luxury Pergolas: 15′-6″ by 22′ grids available
  • Column Sizes: 4″ for typical walkways, 6″ to 8″ for luxury/larger spans

Decking Systems

  • Standard: 6″ Pan decking for hanging canopies
  • Large Spans: Cap and Pan construction
  • Insulated: Aluminum panels for enhanced R-Value, cooler temperatures, noise reduction

Rain Water Management

  • Internal Gutters: Pitched toward or away from building
  • Options: Free outflow, downspout connection, or internal column routing

Finish Options

  • Powder-Coated: Durable, weather-resistant finish
  • Electrostatic DTM Paint: Professional-grade coating

Accessories & Features

  • Lighting: Recessed or surface-mounted, strip lights
  • Additional: Fans, heaters, and custom lighting with proper design, controllable by wifi apps and bluetooth remotes
  • Walls: Slatted panels, operable louvers, retractable fabric screens, and sliding glass
  • Flexibility: Structures support any type of accessory with proper engineering
